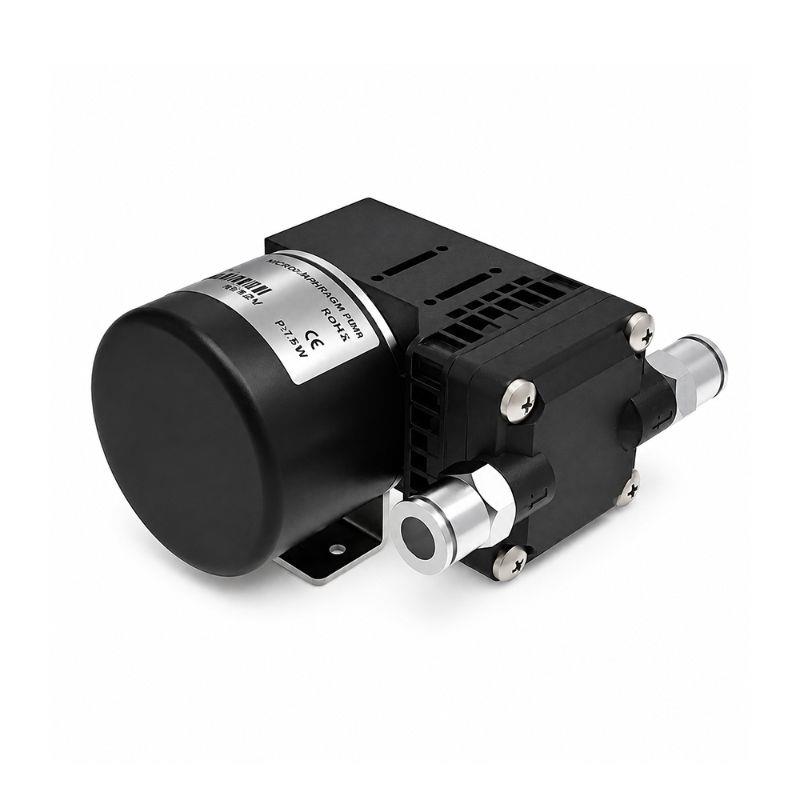

KLVP6 Gas-Liquid Mixed-Transfer Diaphragm Vacuum Pump
The Kamoer KLVP6 is a brushless diaphragm vacuum pump designed for gas transfer and intermittent gas-liquid mixed transfer in OEM equipment. Multiple single-head and dual-head configurations provide a choice between higher vacuum and higher flow.
Selected configurations can handle gas-liquid mixtures containing up to 60% liquid by volume, making the KLVP6 suitable for applications where occasional liquid may enter the pneumatic circuit. It is not intended for prolonged pumping of pure liquid.
Key Features
-
Gas flow rates from ≥6 to ≥12 L/min
-
Ultimate vacuum down to ≤-0.095 MPa
-
Single-head, dual-head series, and dual-head parallel configurations
-
Gas-liquid mixed transfer on selected models
-
Up to 60% liquid content by volume on supported configurations
-
12 V and 24 V options
-
Brushless DC motor
-
PWM and 0–5 V speed control
-
FG speed feedback
-
Reference product life of ≥10,000 h with pure gas
-
NPT 1/8 or hose-barb connection options
-
EPDM fluid-contact elastomers
Typical Applications
-
Gas sampling in environmental monitoring equipment
-
Vacuum generation in laboratory instruments
-
Negative-pressure generation in oxygen concentrators
-
Vacuum suction cups in industrial automation
-
Gas-liquid mixed transfer systems
-
General OEM pneumatic and vacuum equipment
Configuration Comparison
| Configuration |
Pump Structure |
Gas Flow |
Ultimate Vacuum |
Gas-Liquid Mixed Transfer |
| KLVP6-E-BXX |
Single head |
≥8 L/min |
≤-0.082 MPa |
Liquid content ≤60% |
| KLVP6-E-PBXX |
Dual head in series |
≥8 L/min |
≤-0.095 MPa |
Not supported |
| KLVP6-E-BXX-A |
Single head with hose barb |
≥6 L/min |
≤-0.082 MPa |
Liquid content ≤60% |
| KLVP6-E-DBXX-A |
Dual head in parallel |
≥12 L/min |
≤-0.082 MPa |
Liquid content ≤60% |
The series configuration is designed for higher vacuum, while the parallel configuration increases flow capacity.
General Specifications
| Parameter |
Specification |
| Rated voltage |
12 V / 24 V |
| Motor type |
Brushless DC motor |
| Control |
Constant speed, PWM or 0–5 V speed control |
| Power |
≤15 W; 20 W for the dual-head parallel model |
| Reference noise |
≤70 dB |
| Reference product life with pure gas |
≥10,000 h |
| Reference life at 60% liquid content |
≥5,000 h |
| Operating temperature |
0–50°C |
| Relative humidity |
<80%, non-condensing |
| Protection rating |
IP30 |
| Connection options |
NPT 1/8 with 8 mm push-in fitting or hose barb for 5 mm × 8 mm tubing |
Fluid-Contact Materials
-
Pump head: PPS
-
Pump body: PA
-
Diaphragm: EPDM
-
Umbrella valves: EPDM
-
Seals: EPDM
Motor Control
-
PWM frequency: 10–30 kHz
-
PWM amplitude: 5 V
-
Motor stopped: 0%–10% duty cycle
-
Speed-control range: 11%–100% duty cycle
-
Analog input: 0–5 V
-
Analog stop range: 0–0.5 V
-
Analog speed-control range: 0.6–4.5 V
-
FG output: 1 pulse per revolution
Reference performance was measured using air at 25°C, standard atmospheric pressure, and no load pressure. Actual performance depends on gas composition, liquid content, temperature, tubing, filters, system resistance, voltage, and duty cycle.
For gas-liquid mixed transfer, the liquid content should not exceed 60% by volume, and prolonged pumping of pure liquid should be avoided. Mineral oil, strongly corrosive media, and contaminated fluids are not recommended. Chemical compatibility and performance should be verified under actual operating conditions.
