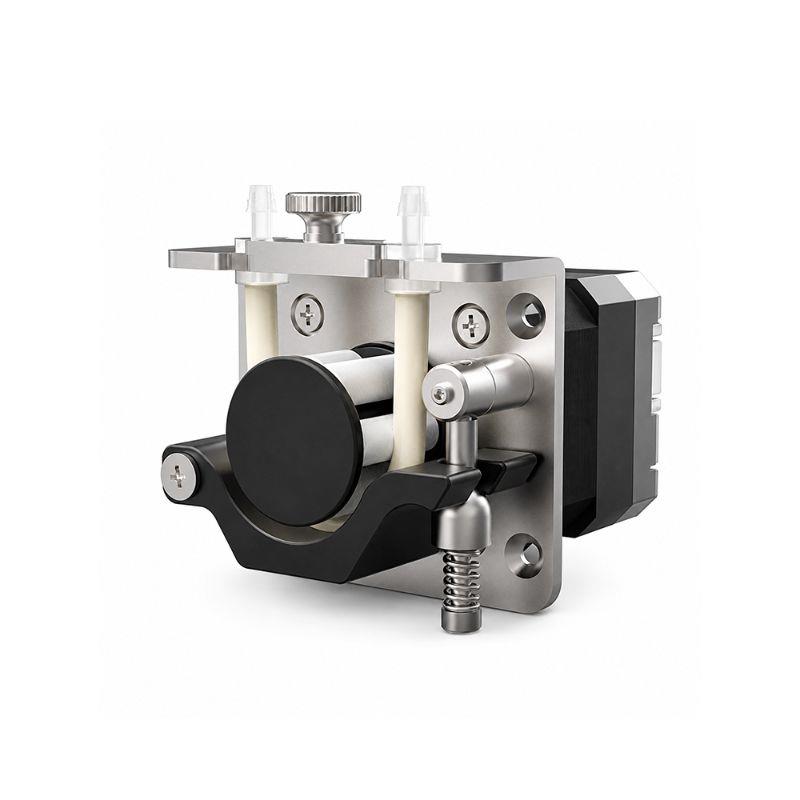

KCSmini Micro Peristaltic Pump
Compact Stepper-Driven Pump for Precision Fluid Transfer
The Kamoer KCSmini is a compact micro peristaltic pump driven by a 42 mm stepper motor. Designed for precision liquid dispensing and stable fluid transfer, it offers a reference flow range of 0.01–155 mL/min through different tubing and rotor configurations.
The fluid contacts only the tubing, simplifying fluid-path maintenance and reducing the risk of cross-contamination. With panel mounting, a quick-release tubing mechanism, and multiple control options, the KCSmini is suitable for integration into analytical instruments, medical diagnostic equipment, laboratory systems, printing equipment, environmental instruments, and other OEM devices.
Key Features
Stepper Motor Control
The stepper motor supports precise speed and direction control, helping equipment manufacturers achieve controlled liquid dispensing across a wide flow range.
Wide Flow Range
By combining different tubing sizes, motor speeds, and rotor configurations, the KCSmini provides a reference flow range of 0.01–155 mL/min.
Available tubing sizes include:
-
14#: 1.6 × 4.8 mm
-
19#: 2.4 × 5.6 mm
-
16#: 3.2 × 6.4 mm
Actual flow depends on the tubing material and dimensions, motor speed, liquid properties, outlet pressure, and operating conditions.
Three-Roller and Six-Roller Options
The KCSmini is available with either three or six rollers:
The appropriate configuration should be selected according to the required flow rate and pulsation level.
Quick-Release Tubing Design
The quick-release pump head allows the tubing to be installed or replaced without complex disassembly. This simplifies routine maintenance and is particularly useful in equipment where the fluid path requires regular replacement.
Multiple Tubing Options
The pump supports imported PharMed® BPT tubing and silicone tubing in three standard sizes.
Because the liquid remains inside the tubing, fluid compatibility can be adjusted by selecting an appropriate tubing material. Chemical compatibility and tubing service life should be verified using the actual liquid and operating conditions.
Compact Panel-Mount Design
The KCSmini uses a compact panel-mount structure with an approximate weight of 560 g, making it suitable for space-limited OEM equipment.
Flexible Connection Options
Available connection options include:
These options simplify integration with different tubing and equipment fluid paths.
Flexible Control Solutions
The pump can be paired with optional stepper motor drivers that support:
-
Internal or external potentiometer speed adjustment
-
MODBUS RS485 communication
-
0–10 V analog speed control
-
Electric or trigger-based start/stop control
-
Clockwise and counterclockwise operation
Additional driver-board options support rotary encoder control, foot-switch control, external analog signals, and RS485 communication.
Typical Applications
-
Medical diagnostic equipment
-
Analytical instruments
-
Biochemical analyzers
-
Laboratory research equipment
-
Environmental monitoring instruments
-
Inkjet printing systems
-
Washing and disinfection equipment
-
Food and beverage equipment
-
Industrial machinery
-
Household appliances
Technical Specifications
| Parameter |
Specification |
| Product model |
KCSmini |
| Pump type |
Micro peristaltic pump |
| Motor type |
Stepper motor |
| Rated pump voltage |
24 V |
| Reference flow range |
0.01–155 mL/min |
| Maximum reference speed |
450 rpm |
| Power |
20 W |
| Weight |
Approx. 560 g |
| Reference noise level |
≤50 dB |
| Installation |
Panel mount |
| Rotor options |
Three rollers or six rollers |
| Tubing materials |
PharMed® BPT or silicone |
| Tubing sizes |
14#, 19#, and 16# |
| Suitable tubing wall thickness |
1.6 mm |
| Connector options |
Barbed connector or tubing-to-rigid-tube connector |
| Motor reference service life |
6,000 hours |
| BPT tubing reference service life |
1,000 hours |
| Silicone tubing reference service life |
200 hours |
The noise value was measured at a distance of 50 cm with an ambient noise level of 35 dB. Flow values were measured using pure water at 20°C, standard atmospheric pressure, and zero outlet pressure. All performance figures are for reference only.
Reference Flow Rates
Reference values at 450 rpm, 24 V, and 1.2 A:
| Rotor Configuration |
14# Tubing |
19# Tubing |
16# Tubing |
| Three rollers |
38.5 mL/min |
80 mL/min |
155 mL/min |
| Six rollers |
33 mL/min |
60.5 mL/min |
84 mL/min |
Actual performance should be verified using the intended liquid, tubing, pressure, speed, and duty cycle.
Selection and Operating Notes
Tubing selection should consider liquid compatibility, temperature, pressure, duty cycle, and expected service life. Immersion or chemical compatibility testing is recommended before final selection.
The recommended operating environment should not exceed 45°C or 70% relative humidity, non-condensing. Excessive loading or unsuitable operating conditions may shorten product life.
When the pump remains unused for an extended period with the tubing compressed inside the pump head, the tubing may temporarily adhere internally and prevent priming. Removing and gently rolling the tubing by hand can help restore its elasticity.
About Kamoer
Founded in 2005, Kamoer specializes in reliable micro-pump and precision fluid-handling solutions. We support equipment manufacturers with pump selection, tubing evaluation, control integration, customized configurations, and testing under actual operating conditions.
Contact Kamoer with your liquid, target flow rate, pressure, duty cycle, tubing requirements, control method, and available installation space to receive a suitable KCSmini configuration.
