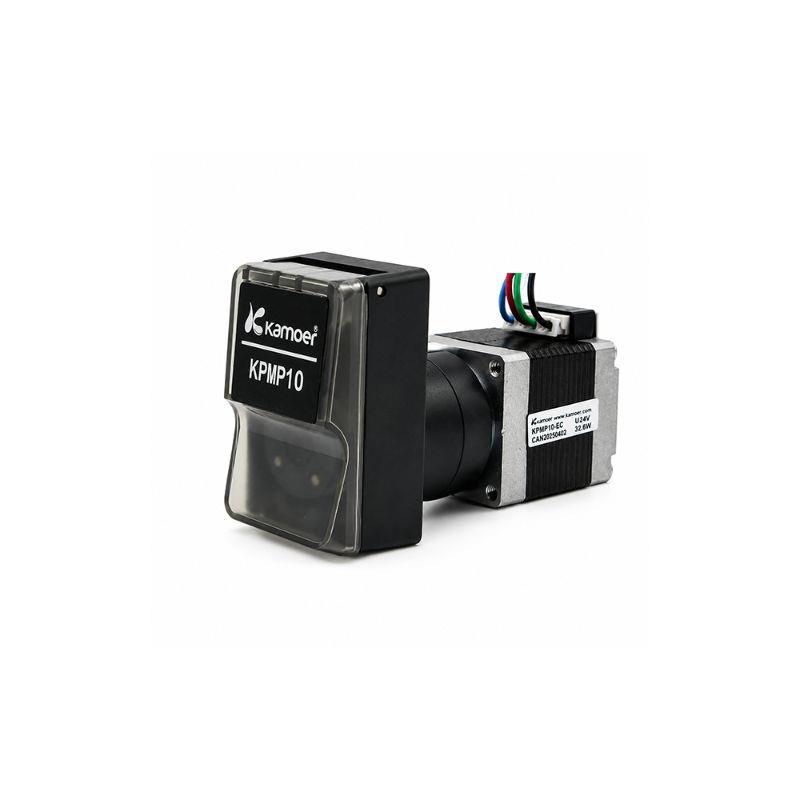

KPMP10 Micro Peristaltic Pump
Compact Low-Flow Pump for Precision Fluid Transfer
The Kamoer KPMP10 is a compact, four-roller micro peristaltic pump designed for low-flow liquid transfer in OEM equipment. It supports both stepper motor and brushed DC motor configurations, with multiple Perx MED55 and Perx P60 tubing sizes for different flow and compatibility requirements.
Its panel-mount design, compact dimensions, and flexible control options make the KPMP10 suitable for medical diagnostic equipment, analytical instruments, biochemical analyzers, laboratory systems, environmental instruments, and other automated fluid-handling devices.
Key Features
Stepper and DC Motor Options
The KPMP10 is available with three motor configurations:
The stepper motor version is designed for applications requiring controlled speed and repeatable fluid transfer. The DC motor versions provide a simpler solution for basic on/off liquid-transfer functions.
Compact Low-Flow Transfer
The stepper motor configuration provides a reference flow range of 0–5.9 mL/min at 100 rpm.
The DC motor configuration offers higher reference output, with values in the manual reaching up to 11.47 mL/min depending on the tubing size and motor operating point.
Actual flow depends on the tubing, motor speed, liquid properties, outlet pressure, and operating conditions.
Six Tubing Sizes
The KPMP10 supports six standard tubing dimensions:
-
0.25 × 2.05 mm
-
0.51 × 2.31 mm
-
0.89 × 2.59 mm
-
1.02 × 2.72 mm
-
1.30 × 3.00 mm
-
1.52 × 3.22 mm
The recommended tubing wall thickness is approximately 0.85–0.90 mm.
Perx MED55 and Perx P60 Tubing
Two tubing materials are available:
Perx MED55
-
Colorless and transparent
-
DEHP-free
-
Suitable for applications involving contact with body fluids when verified for the final device
-
Compatible with multiple sterilization methods
-
Produced in a cleanroom environment
-
Listed as compliant with ISO 10993 in the product manual
Perx P60
-
Designed for extended tubing life and low internal-wall spalling
-
Supports repeated offline or online sterilization
-
Resistant to many common chemicals, acids, alkalis, and oxidizing liquids
-
Listed as compliant with RoHS and relevant FDA requirements in the product manual
Tubing compatibility should be verified using the actual liquid, concentration, temperature, pressure, speed, and duty cycle.
Four-Roller Pump Head
The four-roller structure supports stable low-flow delivery in a compact pump head. The liquid remains inside the tubing, simplifying fluid-path replacement and helping isolate the pump mechanism from the medium.
Planetary Friction-Reduction Drive
The planetary friction-reduction transmission provides a compact drive structure for low-flow fluid transfer. This design helps the pump fit into space-limited instruments and OEM devices.
Panel-Mount Installation
The KPMP10 is designed for panel mounting and is available with or without integrated tubing clamps. The compact structure simplifies integration into analytical, medical, and laboratory equipment.
Flexible Stepper Motor Control
Optional stepper motor drivers support:
-
Internal or external potentiometer speed adjustment
-
MODBUS RTU communication
-
RS485 control
-
0–10 V analog speed control
-
Electric or trigger-based start/stop
-
Clockwise and counterclockwise operation
-
Rotary encoder control
-
Foot-switch control
-
External analog signals
Typical Applications
-
Medical diagnostic equipment
-
Analytical instruments
-
Biochemical analyzers
-
Laboratory research equipment
-
Environmental monitoring instruments
-
Reagent dosing systems
-
Inkjet printing equipment
-
Washing and disinfection equipment
-
Food and beverage equipment
-
Industrial fluid-handling systems
Technical Specifications
| Parameter |
Stepper Motor Version |
Brushed DC Motor Version |
| Motor code |
ST |
D12 / D24 |
| Rated voltage |
24 V |
12 V or 24 V |
| Power |
10 W |
5 W |
| Reference flow range |
0–5.9 mL/min |
Up to 11.47 mL/min in the reference table |
| Control method |
External stepper motor driver |
On/off control |
| Weight |
Approx. 145 g |
Approx. 145 g |
| Motor reference service life |
6,000 hours |
800 hours |
| Reference noise level |
<55 dB |
<60 dB |
| Rotor configuration |
Four rollers |
Four rollers |
| Tubing materials |
Perx MED55 or Perx P60 |
Perx MED55 or Perx P60 |
| Recommended tubing wall thickness |
0.85–0.90 mm |
0.85–0.90 mm |
| Installation |
Panel mount |
Panel mount |
Motor service-life values are reference figures from the product manual. Actual life depends on speed, load, duty cycle, temperature, and other operating conditions.
Stepper Motor Reference Flow
Reference values at 100 rpm:
| Tubing Size |
MED55 |
P60 |
| 0.25 × 2.05 mm |
0.135 mL/min |
0.135 mL/min |
| 0.51 × 2.31 mm |
0.85 mL/min |
0.85 mL/min |
| 0.89 × 2.59 mm |
2.25 mL/min |
2.25 mL/min |
| 1.02 × 2.72 mm |
3.05 mL/min |
3.05 mL/min |
| 1.30 × 3.00 mm |
4.45 mL/min |
4.45 mL/min |
| 1.52 × 3.22 mm |
5.9 mL/min |
5.9 mL/min |
These values were measured using pure water at 20°C, standard atmospheric pressure, and zero outlet pressure. Repeatability was measured at 100 rpm. All values are for reference only.
DC Motor Reference Flow
| Tubing Size |
Reference Flow |
| 0.25 × 2.05 mm |
0.29 mL/min |
| 0.51 × 2.31 mm |
1.77 mL/min |
| 0.89 × 2.59 mm |
4.31 mL/min |
| 1.02 × 2.72 mm |
6.07 mL/min |
| 1.30 × 3.00 mm |
8.51 mL/min |
| 1.52 × 3.22 mm |
11.47 mL/min |
Actual DC motor flow varies with supply voltage, motor-speed tolerance, tubing condition, liquid properties, and outlet pressure.
Selection Notes
Before selecting a KPMP10 configuration, confirm:
-
Liquid and concentration
-
Target flow rate
-
Operating pressure
-
Tubing compatibility
-
Required motor and control type
-
Duty cycle
-
Sterilization requirements
-
Expected service life
-
Available installation space
Real-liquid testing under actual operating conditions is recommended before final selection.
About Kamoer
Founded in 2005, Kamoer specializes in reliable micro-pump and precision fluid-handling solutions. We support equipment manufacturers with pump selection, tubing evaluation, control integration, customized configurations, and application testing.
Contact Kamoer with your liquid, target flow rate, pressure, duty cycle, tubing requirements, control method, and installation space to receive a suitable KPMP10 configuration.
