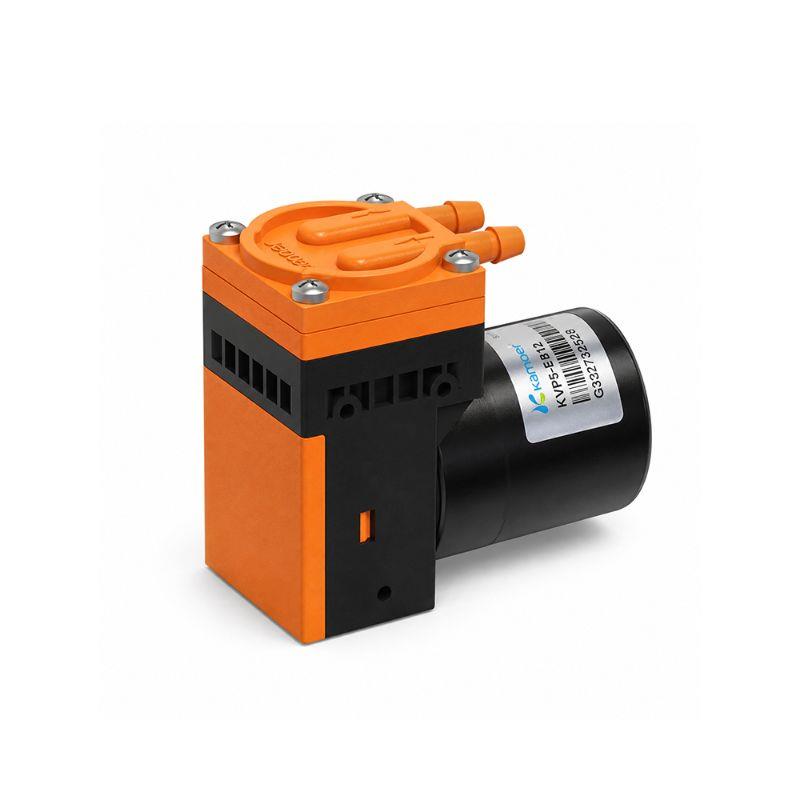

KLVP5 Compact Diaphragm Air Pump
The KLVP5 is a compact diaphragm air pump designed for vacuum generation and gas transfer in OEM equipment. Available with brushed or brushless DC motors, it combines a flow rate of at least 5 L/min with low power consumption and a lightweight structure.
The brushless version supports PWM and 0–5 V speed control, making it suitable for equipment requiring adjustable vacuum or airflow.
Key Features
-
Free-flow rate of ≥5 L/min
-
Vacuum performance of ≤-0.060 MPa
-
Compact and lightweight design
-
Power consumption of 5 W
-
12 V and 24 V configurations
-
Brushed and brushless DC motor options
-
Brushless model supports PWM and 0–5 V speed control
-
FG speed feedback on the brushless model
-
Suitable for dry-running operation
-
EPDM diaphragm and valves
-
Product life up to ≥6,000 hours with the brushless configuration
Typical Applications
-
Gas detection equipment
-
Rehabilitation instruments
-
Industrial vacuum suction cups
-
Massage equipment
-
Gas sampling systems
-
Compact OEM vacuum systems
Model Comparison
| Item |
KLVP5-E-D12/24 |
KLVP5-E-B12/24 |
| Motor type |
Brushed DC motor |
Brushless DC motor |
| Flow rate |
≥5 L/min |
≥5 L/min |
| Vacuum |
≤-0.060 MPa |
≤-0.060 MPa |
| Positive pressure |
≥0.1 MPa |
≥0.1 MPa |
| Power |
5 W |
5 W |
| Control |
On/Off |
On/Off, PWM or 0–5 V |
| Rated voltage |
12/24 V |
12/24 V |
| Product life |
≥2,000 h |
≥6,000 h |
| Weight |
Approx. 150 g |
Approx. 135 g |
| Reference noise |
≤65 dB |
≤65 dB |
Product Materials
| Component |
Material |
| Pump head |
PA |
| Pump body |
PA |
| Diaphragm |
EPDM |
| Valve |
EPDM |
| Eccentric wheel |
Metal |
Material compatibility should be verified against the gas composition, temperature, humidity and any vapor or chemical exposure in the application.
Brushless Motor Control
The brushless KLVP5 supports:
-
PWM speed control: 10–30 kHz with a 5 V amplitude
-
PWM stop range: 0–10% duty cycle
-
PWM adjustment range: 11–100% duty cycle
-
Analog speed control: 0–5 V
-
Analog stop range: 0–0.5 V
-
Analog adjustment range: 0.6–4.5 V
-
FG feedback: one pulse per revolution
Operating Conditions
| Item |
Specification |
| Operating temperature |
0–50°C |
| Operating humidity |
<80% RH, non-condensing |
| Recommended external tubing |
4 × 6 mm PU tubing |
The KLVP5 is primarily designed as a diaphragm vacuum pump. Although positive-pressure performance is listed in the manual, continuous positive-pressure operation is not recommended because it may shorten product life.
Performance data were measured using air at 25°C and standard atmospheric pressure without load. Actual flow, vacuum, noise and service life may vary with system resistance, environmental conditions, gas properties and duty cycle. Application testing is recommended before final OEM integration.
