Multiple Channel Peristaltic Pump KMC

FOB Price : Get a Price/Quote

Min.Order : 1 Piece(s)

Certification : CE

Brand Name : Kamoer

Payment Terms : T/T,PayPai

contact now Video Conference

favorite

share :

product information

  • brand name : Kamoer

  • certification : CE

  • min.order : 1 Piece(s)

  • warranty : 1 year

  • payment terms : T/T,PayPai

  • Packaging : Carton

  • Specification : KMC

  • place of origin : Shanghai

product description

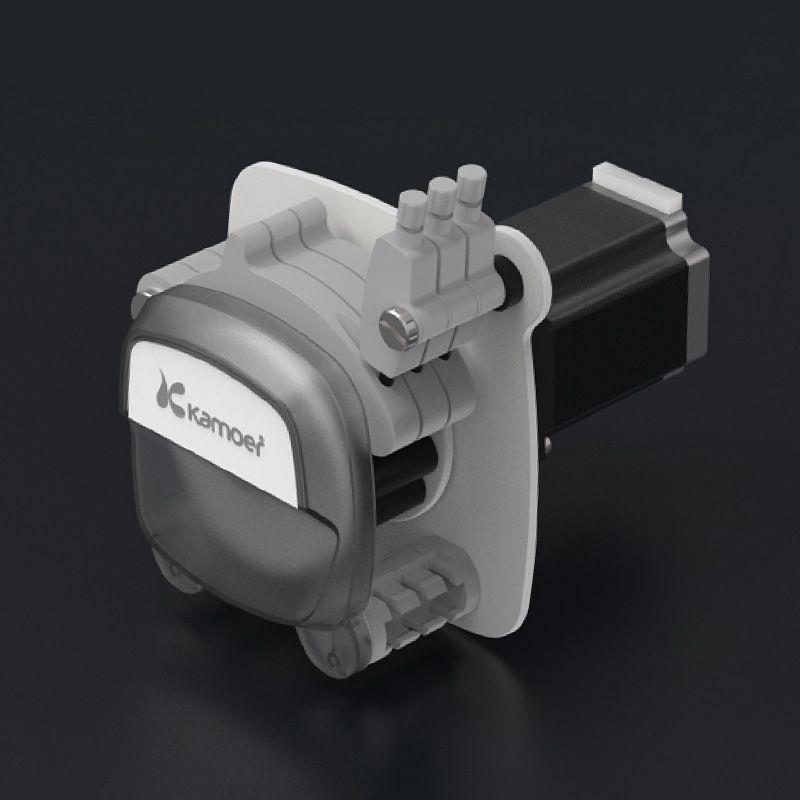

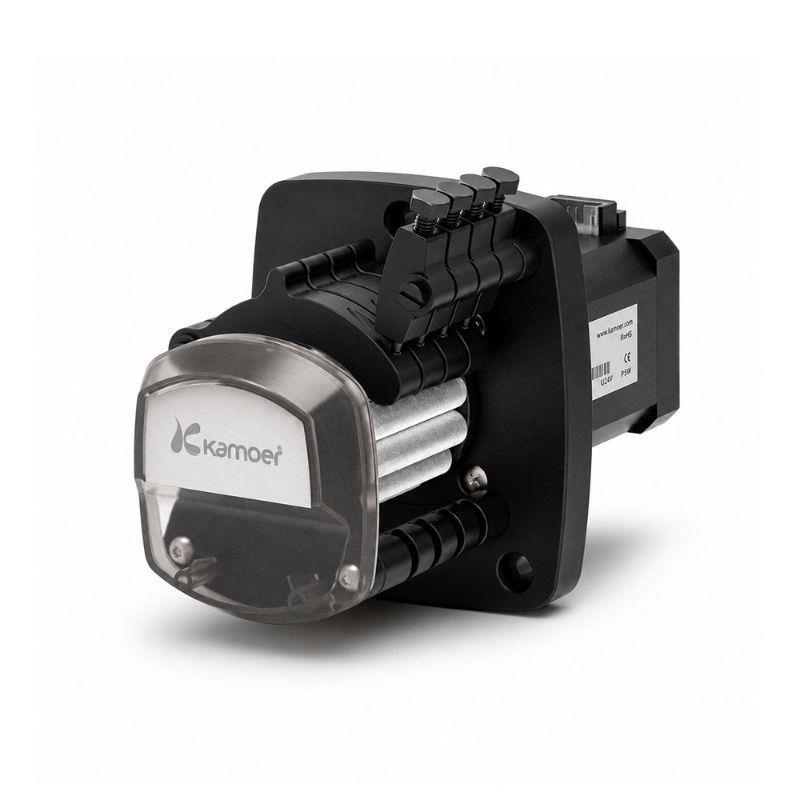

KMC Multi-Channel Micro Peristaltic Pump

The KMC is a stepper-driven multi-channel peristaltic pump designed for precision fluid transfer and dispensing in analytical and medical instruments. Its 12-roller pump head provides low-pulsation delivery, while the quick-loading cassette design simplifies tubing replacement and routine operation.


Key Features

  • Flow range of 0.0001–10.3 mL/min per channel

  • Repeatability of ±1%

  • Two-channel and four-channel configurations

  • ST42 and ST57 stepper motor options

  • 12-roller design for low-pulsation fluid delivery

  • Elastic preload structure for quick pressure adjustment

  • Quick-loading cassette for convenient tubing replacement

  • Supports PVC and BPT tubing

  • Compatible with capillary tubing featuring a wall thickness of 0.8–1.0 mm

  • Optional drivers supporting RS485, Modbus-RTU and 0–10 V speed control


Typical Applications

  • ICP and spectroscopic analysis instruments

  • Medical diagnostic equipment

  • Microfluidic dispensing systems

  • Laboratory automation

  • Analytical instruments

  • Multi-channel reagent delivery


Technical Specifications

Item Specification
Pump type Multi-channel peristaltic pump
Motor type Stepper motor
Rated voltage 24 V
Flow range 0.0001–10.3 mL/min per channel
Repeatability ±1%
Channel options ST42: 2 or 4 channels; ST57: 4 channels
Roller configuration 12 rollers
Rated power ST42: 20 W; ST57: 40 W
Motor life 6,000 h
Reference noise <50 dB at 50 cm under 35 dB ambient noise
Control Stepper motor driver
Tubing material PVC or BPT
Tubing wall thickness 0.8–1.0 mm
Weight ST42-2: approx. 470 g; ST42-4: approx. 870 g; ST57-4: approx. 1,050 g


Reference Flow at 100 rpm

Tubing Size, ID × OD Reference Flow per Channel
0.51 × 2.31 mm 1.35 mL/min
1.02 × 2.72 mm 4.1 mL/min
1.52 × 3.22 mm 7.3 mL/min
2.06 × 3.76 mm 10.3 mL/min

Reference data were measured using pure water at 20°C and standard atmospheric pressure. Actual flow may vary with the liquid, tubing, outlet pressure, motor speed and operating conditions. A maximum continuous speed of 100 rpm is recommended, with short-term operation not exceeding 120 rpm.


Control Options

Optional control solutions support:

  • Modbus-RTU communication

  • RS485 control

  • 0–10 V analog speed control

  • Internal or external potentiometer adjustment

  • Electrical or trigger start/stop

  • Configurable microstepping and drive current

  • Direction and multi-channel start/stop control

Tubing compatibility, required flow, system pressure and duty cycle should be verified under actual operating conditions before final model selection.
