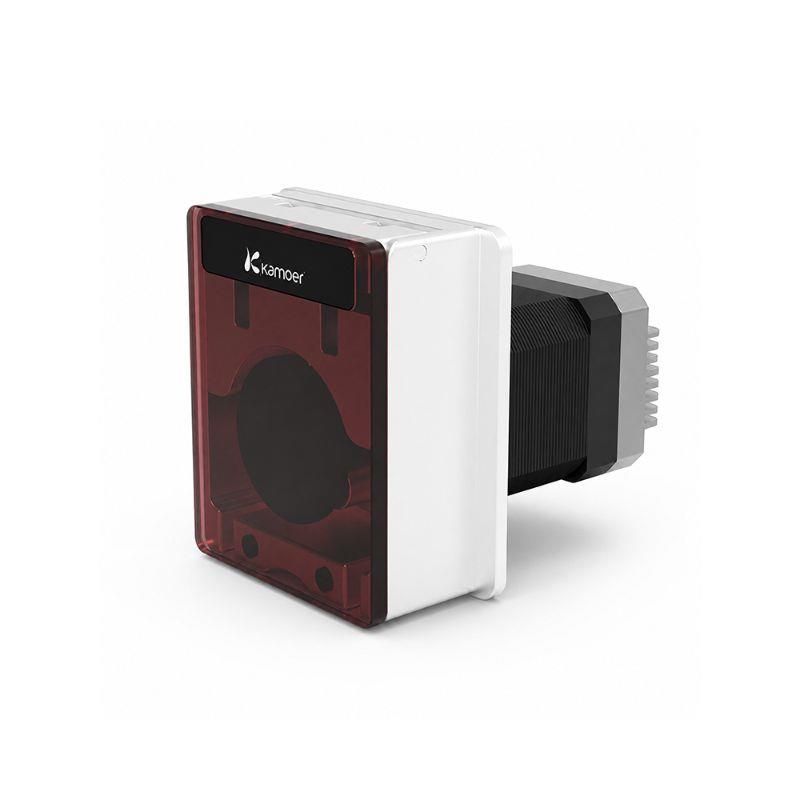

HPKK30 High-Pressure Peristaltic Pump
The Kamoer HPKK30 is a compact, high-speed peristaltic pump designed for high-pressure fluid transfer in OEM equipment. Its three-roller pump head, high-torque stepper motor, and closed-loop control algorithm provide stable operation with low noise and minimal vibration.
The pump supports RS485 communication and features configurable control interfaces and DIP switches for convenient system integration. Its flip-open cover allows quick tubing replacement, while panel mounting simplifies installation in compact instruments and equipment.
Key Features
-
Flow range up to 53 mL/min
-
High-pressure fluid transfer capability
-
Closed-loop stepper motor control
-
High torque, low vibration, and quiet operation
-
Three-roller pump head
-
RS485 communication
-
Configurable digital control interface
-
Convenient flip-open cover for tubing replacement
-
Panel-mounted design with M3 fixing screws
-
Planetary friction-reduction drive
-
Compatible with 1.6 mm × 4.8 mm tubing
Typical Applications
-
Medical diagnostic equipment
-
Analytical instruments
-
Laboratory and research equipment
-
Biochemical analyzers
-
Food and beverage equipment
-
Environmental monitoring instruments
-
Washing and disinfection systems
-
Inkjet printing equipment
-
Industrial machinery
-
Household appliances
Technical Specifications
| Parameter |
Specification |
| Pump model |
HPKK30 |
| Motor type |
Stepper motor |
| Flow range |
0–53 mL/min |
| Maximum reference speed |
300 rpm |
| Rated voltage |
24 V DC |
| Power |
20 W |
| Control method |
RS485 |
| Pump head |
Three rollers |
| Weight |
Approx. 630 g |
| Reference motor service life |
6,000 h |
| Compatible tubing |
Tygon E-3603 |
| Tubing material |
PVC |
| Tubing size |
1.6 mm ID × 4.8 mm OD |
| Reference noise |
<60 dB at 50 cm in a 35 dB ambient environment |
The reference flow of 53 mL/min was measured using pure water at 20°C, atmospheric pressure, no outlet back pressure, 300 rpm, and Tygon E-3603 tubing. Actual performance may vary depending on the fluid, tubing condition, operating speed, outlet pressure, and system configuration.
Tubing compatibility, chemical resistance, service life, and applicable compliance requirements should be verified for each application before final selection.
