Smart Multiple Channel Peristaltic Dispensing Pump NP04

FOB Price : Get a Price/Quote

Min.Order : 1 Piece(s)

Certification : CE

Brand Name : Kamoer

Payment Terms : L/C,T/T,D/P,PayPai,EXW

contact now Video Conference

favorite

Add to Compare

product information

brand name : Kamoer
certification : CE
min.order : 1 Piece(s)
warranty : 1 year
payment terms : L/C,T/T,D/P,PayPai,EXW
Packaging : Carton
Specification : NP04
place of origin : Shanghai

product description

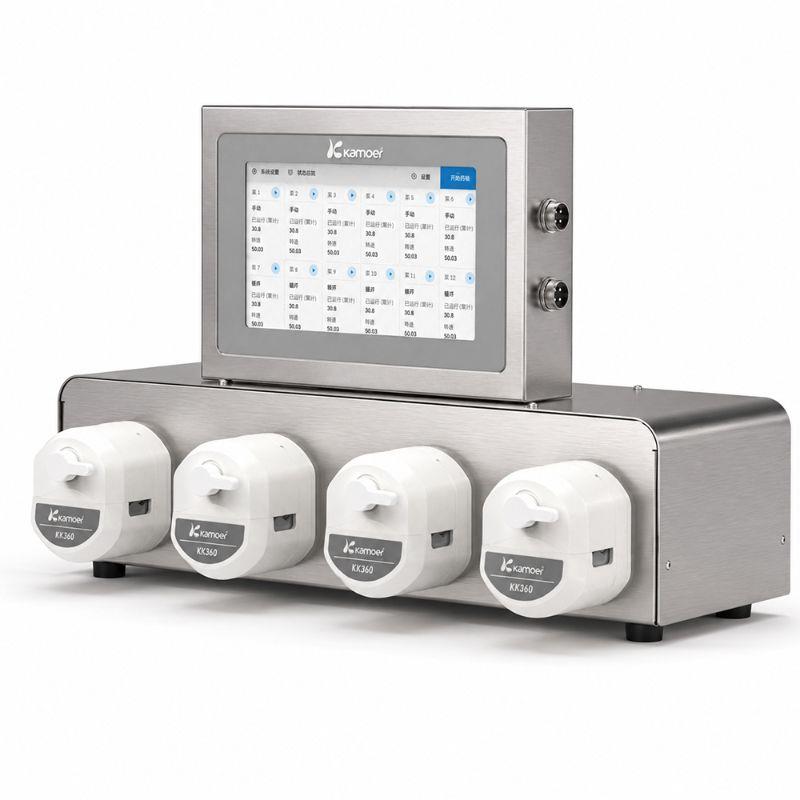

NP04-KK360 Product Introduction

Kamoer NP04-KK360 is an intelligent multi-channel peristaltic pump designed for precision dispensing, parallel experiment liquid feeding, and small-batch liquid transfer applications. With a 4-pump-head modular structure, the system can be stacked and expanded up to 48 pump heads, making it suitable for scientific research, fine chemical development, biopharmaceutical R&D, electrocatalysis liquid feeding, and small-volume filling tasks.

The NP04-KK360 is equipped with KK360 three-roller pump heads and a 42 closed-loop stepper motor, supporting a speed range of 0.1–350 rpm. Its dual-channel pump head design enables stable and controllable low-flow liquid transfer. The system features a 7-inch touchscreen and supports flow calibration, anti-drip suck-back, filling and emptying, program saving and recall, RS485 Modbus control, and footswitch control for flexible multi-channel operation.

As a reliable micro-pump manufacturer, Kamoer brings its experience in precision fluid transfer into the design of the NP04-KK360, providing a compact, efficient, and expandable multi-channel fluid handling solution for laboratories, pilot-scale platforms, and multi-variety small-batch production.

Positioning statement:
NP04-KK360 is a compact modular intelligent peristaltic pump that combines 4-pump-head independent control, low-pulsation liquid transfer, program-based operation, and expansion up to 48 pump heads for multi-channel precision feeding and small-batch dispensing applications.
